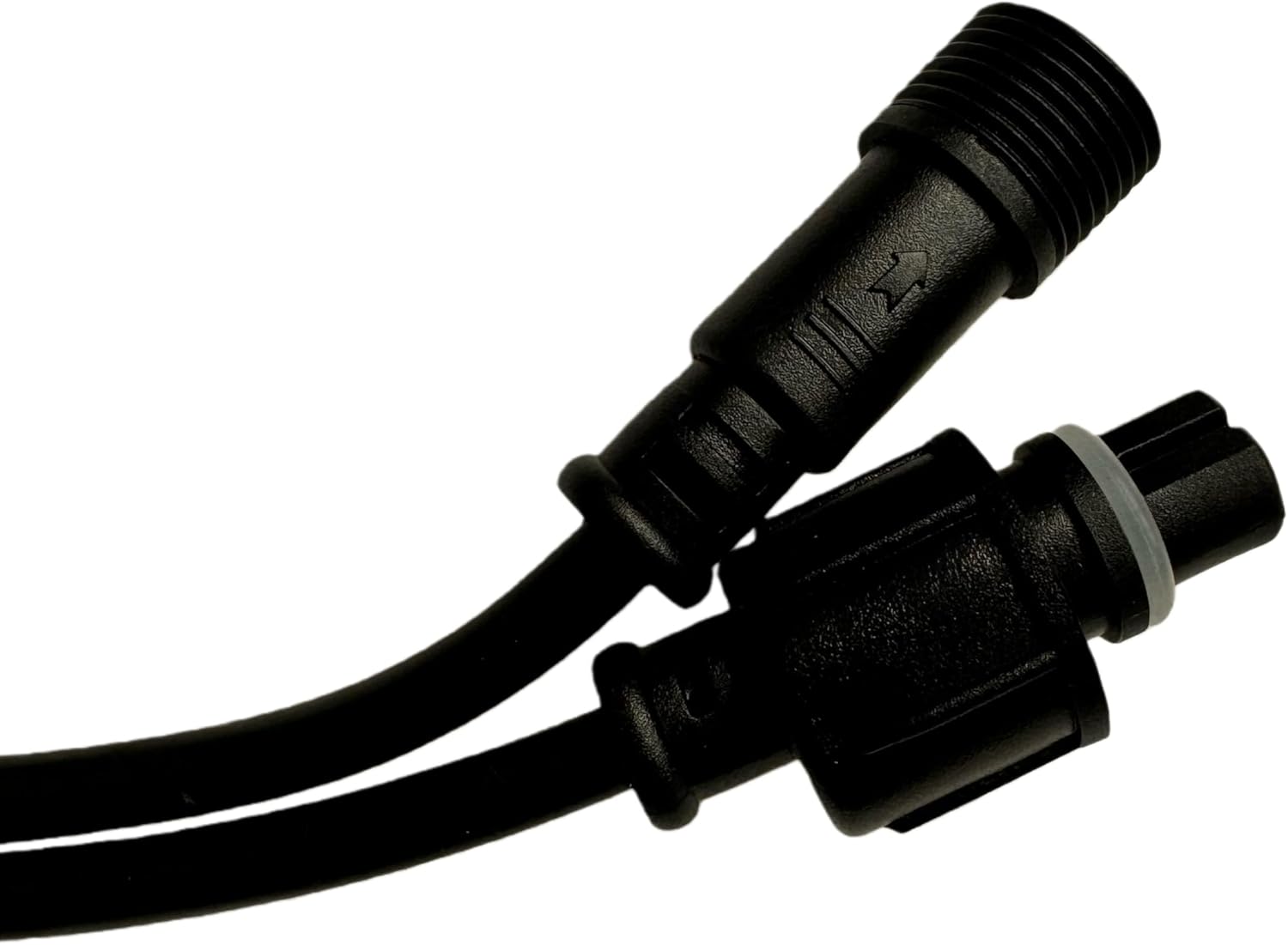

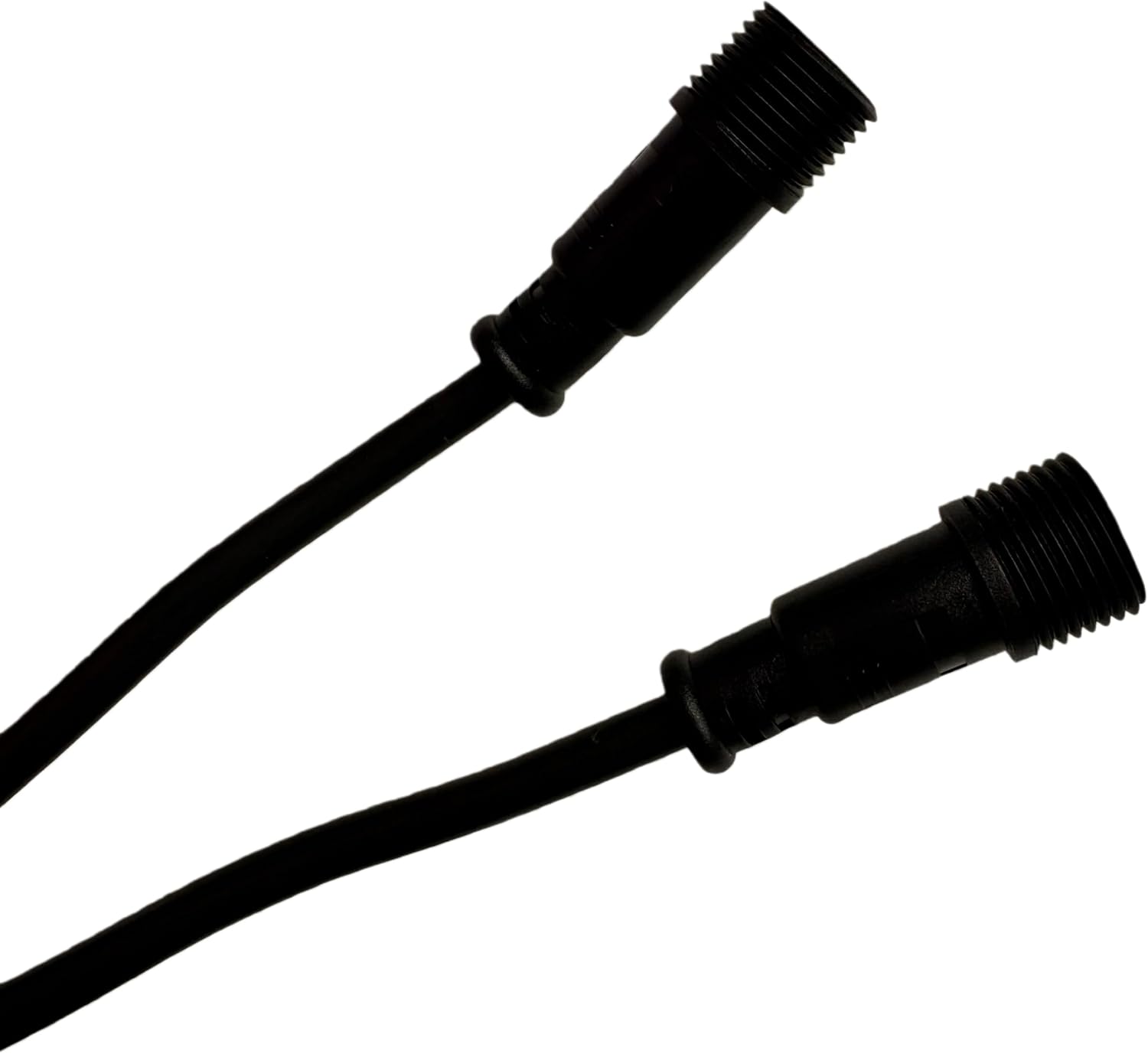

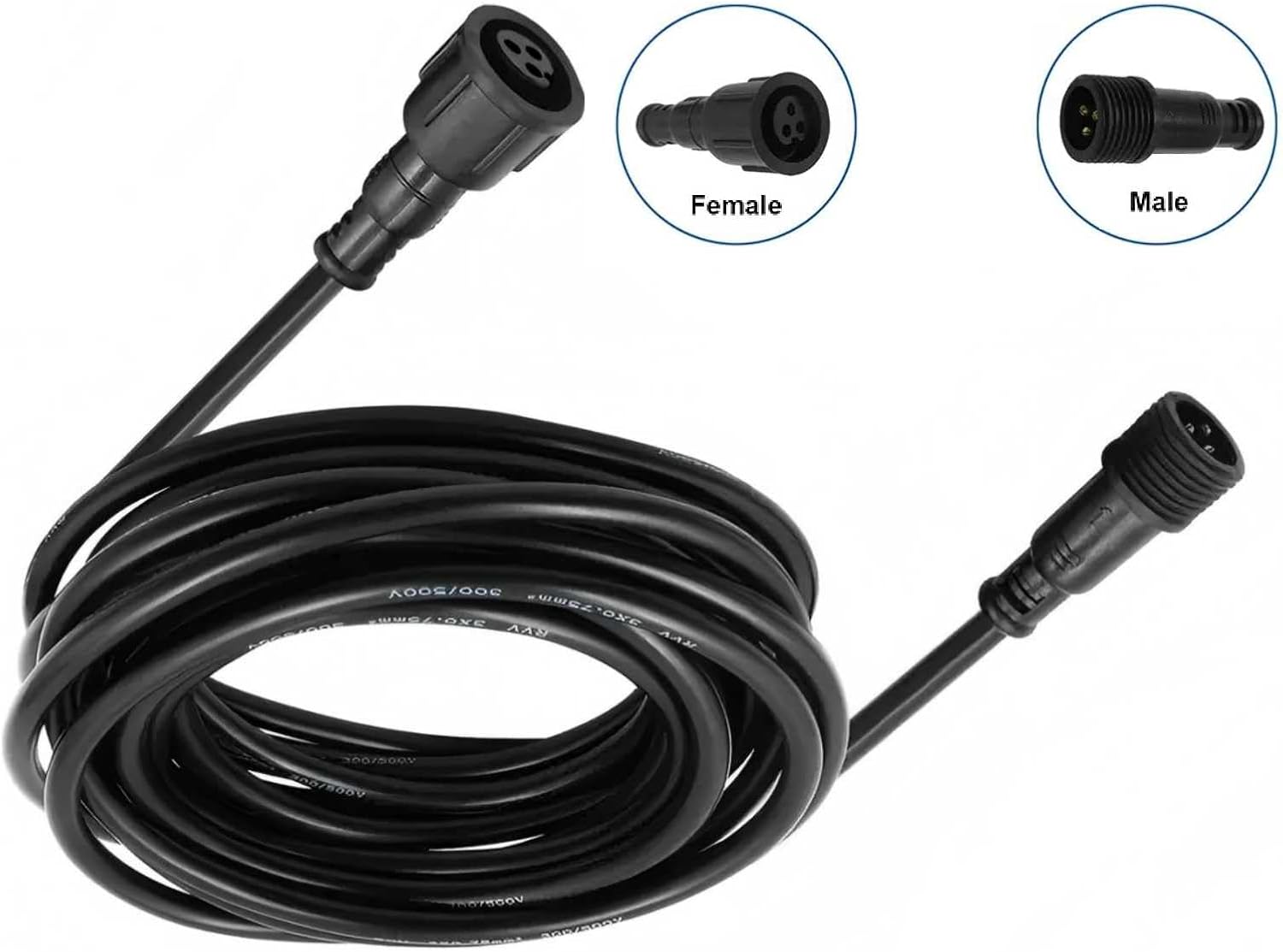

2PCS-3Pin xConnect Extension Cable, with Male and Female LED Connector， X-Connector Waterproof Extension Cable Wire，IP67 for WS2811 Flood Light/LED Strip Lights. (X-1M-2PCS)

Description 3 Pin Waterproof Connector Way to Connect: Male and Female Ends Push In Material (External):PVC Plastic Color: black Cable Outside Diameter 6mm Total Length (Connected): 100cm;300cm long Max Input Voltage/Current: 220V / 5A Conductive area : 0.5m²（20awg） Description: The 3 PIN Waterproof connector ；for WS2811 Flood Light；LED strips, LED wall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and so on. Connect reliable and effective water-proof. standard pinout diagram for our pixel lights: Brown:DC5-24v + Yellow: Data(DI) Blue: GND Input end: male connector(screw end with bare pin) Output end: female connector(with hole)

• X-Connector Cable: standard xconnect connectors, can be easily adapted to other xconnect connector products. Can be cut from the middle,Can get connectors with different wire lengths .Please note : make sure that the connector can fit your original connector.
• Quick Connect: These 3 pin connectors with a pluggable design, just plug the male head into the female head for easy connection. Tighten the nut on the joint, and the waterproof rubber ring on the joint effectively prevents water and dust from intruding。
• High quality material: The 20 AWG electrical copper wire meets the daily power transmission requirements, featuring cold-resistant, flame retardant and highly flexible.
• PVC Jacket: The 20AWG electrical copper wire meets the daily power transmission requirements. The black PVC jacket can effectively resist sunlight and rain, protect the internal 3 cores wire, and delay the aging speed of the wire.
• Wide Range of Application Scenarios: Indoor / Outdoor LED strip lights, string lights, landscape lights, patio lights, WS2812B LED pixel string lights；ws2811 Flood Lightand other holiday lighting （Applies to: B0FY9STYZF；B09L7K2JHG）
